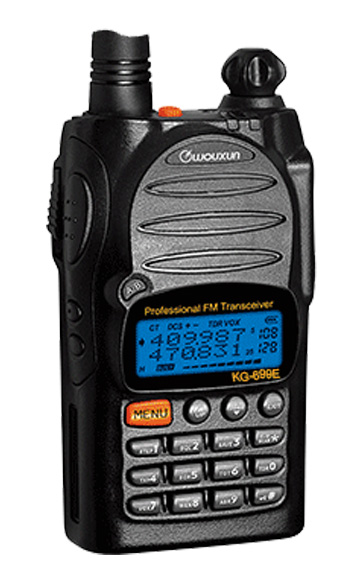

Two Way Radio KG-699E



	Two Way Radio KG-699E

CLICK HERE CLOSE LIST


MAIN FUNCTIONS
DTMF encoding and decoding High/Low Power selection(VHF:5W/1W UHF: 4W/1W) 105 groups DCS/ 50 groups CTCSS Wide /narrow bandwidth selection (25KHz / 12.5KHz) ANI(Caller ID) PTT ID TOT(Time-out Timer) VOX Transmission(Level Adjustable) Multi scan mode ( TO / CO / SE ) Busy channel lockout Wire-clone function All Calls,Group Calls and Selective Calls FM Radio IP55 waterproof Mutil Step Frequency(5K / 6.25 K / 10K / 12.5K / 25K ) Superheterodyne Receiver Type

TECHNICAL SPECIFICATION

Frequency Ranges	VHF: 66-88 / 136-174 / 245-246MHz UHF: 300-350 / 400-470 / 450-520MHz
Channel Spacing	Wide:25KHz / Narrow:12.5KHz
Output Power	VHF:5W/1W UHF:4W/1W
Memory Channels	128
Voltage(DC)	7.4V
Working Temperature	-30℃ ~ +60℃
Antenna Impedance	50Ω
Size	61 x 38 x 117 (mm)

Audio Distortion	≤5%
Modulation Type	FM(F3E)
Max. Frequency Deviation	≤±5KHz
Adjacent Channel Selection	≥65 dB
Frequency Stability	±2.5ppm
Sensitivity (12dB SINAD)	≤0.2µV
Audio Output power	≥500mW
Spurious Radiation	≤-60dB
Waterproof	IP55
Weight	240 g

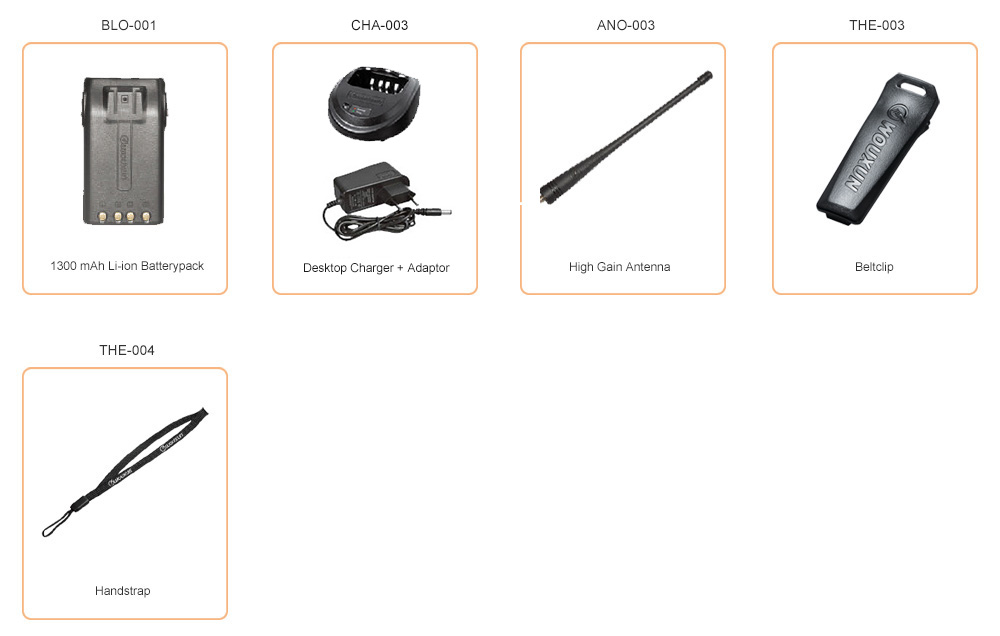

STANDARD ACCESSORY

OPTIONAL ACCESSORY

BLO-007	CHA-007	LCO-003	PCO-009

Li-ion Battery Pack , 2600mAh	Six-way Charger	Leather Case	USB Cable

HEO-001	HEO-002	HEO-003	HEO-005

Headset	Air Conduit Earphone	Headset	Air Conduit Earphone

SMO-001	SMO-002	CCO-001	ELO-001

Speaker	Speaker	Car Charger	Eliminator

ANO-041	ANO-006	AAO-001	AAO-002

Antenna , 38CM	Antenna	SL16 Antenna Adaptor	BNC Antenna Adaptor

BAO-001

"AA" Battery Case
