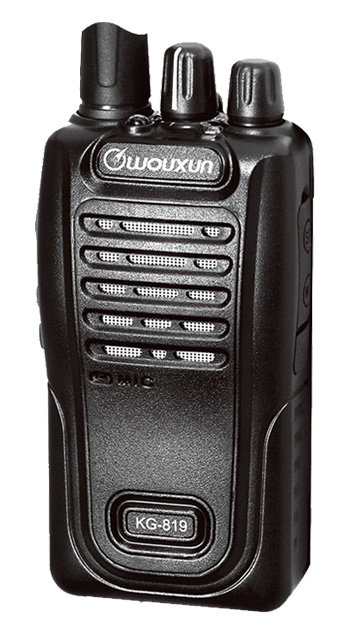

Two Way Radio KG-819



	Two Way Radio KG-819

CLICK HERE CLOSE LIST


MAIN FUNCTIONS
1750Hz Tone DTMF encoding and decoding All calls, group calls and selective calls 105 groups DCS/50 groups CTCSS Distant alarm Voice prompt Wide/Narrow bandwidth selection Multi scan mode (TO/CO/SE) Call ringing VOX (level adjustable) Battery capacity prompt TOT (time-out timer) Busy channel lockout Wireclone function PC program Bright flashlight illumination function Superheterodyne Receiver Type

TECHNICAL SPECIFICATION

Frequency Ranges	VHF: 66-88/136-174/245-250/216-280MHz UHF: 400-470/350-390/400-480/420-520MHz
Channel Spacing	Wide:25KHz / Narrow:12.5KHz
Output Power	VHF:5W/1W UHF:4W/1W
Memory Channels	16
Voltage(DC)	7.4V
Working Temperature	-30℃ ~ +60℃
Antenna Impedance	50Ω
Size	57 x 36 x 116 (mm)

Audio Distortion	≤5%
Modulation Type	FM(F3E)
Max. Frequency Deviation	≤±5KHz
Adjacent Channel Selection	≥65 dB
Frequency Stability	±2.5ppm
Sensitivity (12dB SINAD)	≤0.2µV
Audio Output power	≥500mW
Spurious Radiation	≤-60dB
Waterproof	IP55
Weight	210 g

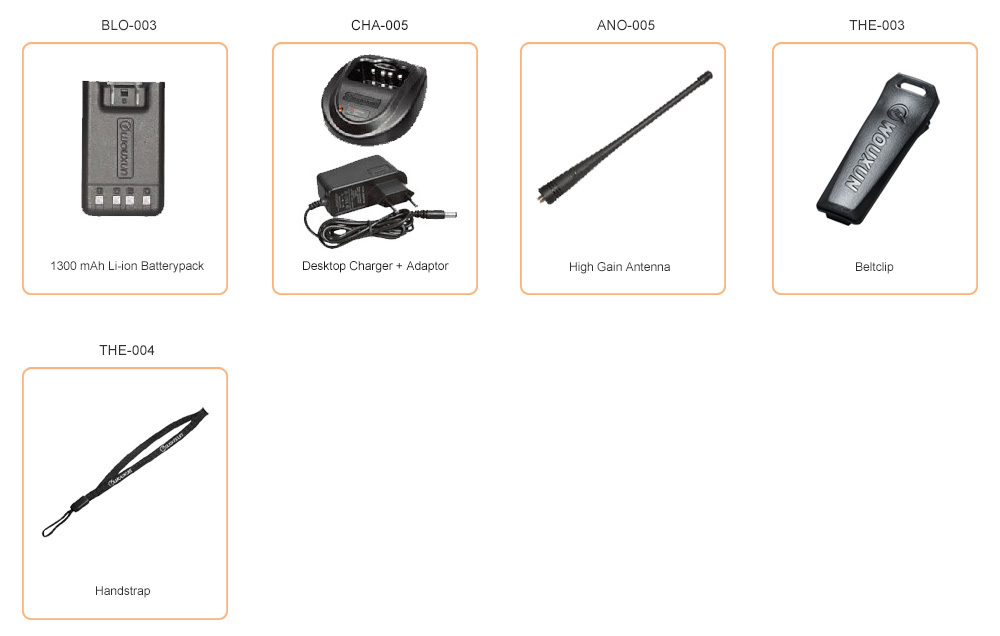

STANDARD ACCESSORY

OPTIONAL ACCESSORY

BLO-006	CHA-008	LCO-003	PCO-009

Li-ion Battery Pack , 1700mAh	Six-way Charger	Leather Case	USB Cable

HEO-001	HEO-002	HEO-003	HEO-005

Headset	Air Conduit Earphone	Headset	Air Conduit Earphone

SMO-001	SMO-002	CCO-001	ELO-002

Speaker	Speaker	Car Charger	Eliminator

ANO-041	ANO-006	AAO-001	AAO-002

Antenna , 38CM	Antenna	SL16 Antenna Adaptor	BNC Antenna Adaptor

BAO-002	BAO-003

"AA" Battery Case	"AAA" Battery Case
