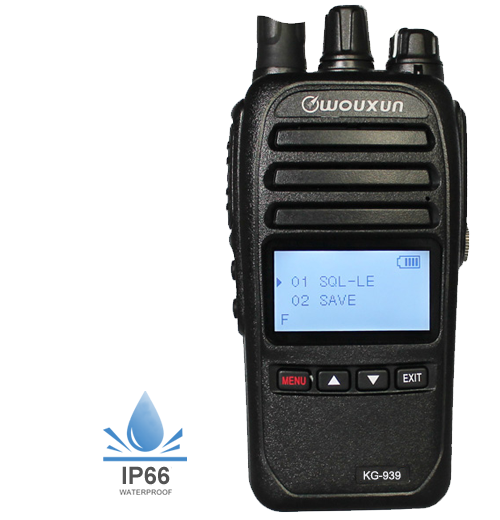

Two Way Radio KG-939



	Two Way Radio KG-939

CLICK HERE CLOSE LIST


MAIN FUNCTIONS
VOX Function CTCSS/DCS Scan 107Groups of CTCSS , 50 Groups of DCS Wide /narrow bandwidth selection(12.5KHz/25KHz) Non-Standard CTCSS / DCS Supported 8 Groups of Scrambler Multi Sidekey Settings Single Tone Pulse Frequencies , 2100 / 1750 / 1450 / 1000Hz Compander Function Waterproof IP66 CH , FREQ , CH Name Selectable

TECHNICAL SPECIFICATION

Intergration
Ranges	400 - 470MHz , PMR446 , PMR446+LPD433 (TX/RX)
Memory Channels	256
Step	5 / 6.25 / 10 / 12.5 / 25 / 50 / 100KHz
Work Mode	F2D / F3E
Power Supply	7.4 VDC
Working Temperature	-20℃ ~ +40℃
Antenna Impedance	50 Ω
Weight	340 g
Size	132 x 62 x 37 (mm)

Receiver
	Wide	Narrow
Adjacent Channel Selectivity	≤70dB	≤60dB
Inter Modulation	≤65dB	≤60dB
Spurious Response	≤70dB	≤70dB
Audio Response	+1~-3dB(0.3~3KHz)	+1~-3dB(0.3~3KHz)
Signal to Noise Ratio	≥45dB	≥40dB
Audio Distortion	≤5%
Audio Power	≤500mW
Sensitivity	UHF/VHF：0.25µV（12dB SINAD）

Transmitter
	Wide	Narrow
Adjacent Channel Selectivity	≥70dB	≥60dB
Type of Modulation	16K F3E	11K F3E
Spurious	≥60dB	≥60dB
Audio Response	+1~-3dB(0.3~3KHz)	+1~-3dB(0.3~3KHz)
Max Frequency Deviation	±5KHz	±2.5KHz
Frequency Stability	±2.5PPM
Audio Distortion	≤5%
Output Power	UHF: 4W / 2W / 0.5W

STANDARD ACCESSORY

Send Accessory Inquiry

Please Click The Icon to Select The Items You Want, And Send The Inquiry to WOUXUN For Offers

BLO-016	CHA-012	CHA-012	ANO-012

Li-ion Battery Pack , 2600mAh	Desktop Charger	Power Supply Adaptor	Antenna

OTH-005	OTH-001

Hand Strap	Belt Clip

OPTIONAL ACCESSORY

BLO-011	CHA-027	LCO-003	PCO-009

Li-ion Battery Pack , 3200mAh	Six-way Charger	Leather Case	USB Programming Cable

HEO-001	HEO-002	HEO-003	HEO-005

Headset	Air Conduit Earphone	Headset	Air Conduit Earphone

SMO-001	SMO-002	CCO-002	ELO-005

Speaker	Speaker	Car Charger	Eliminator

ANO-012	ANO-038	AAO-001	AAO-002

Antenna	Antenna	SL16 Antenna Adaptor	BNC Antenna Adaptor
