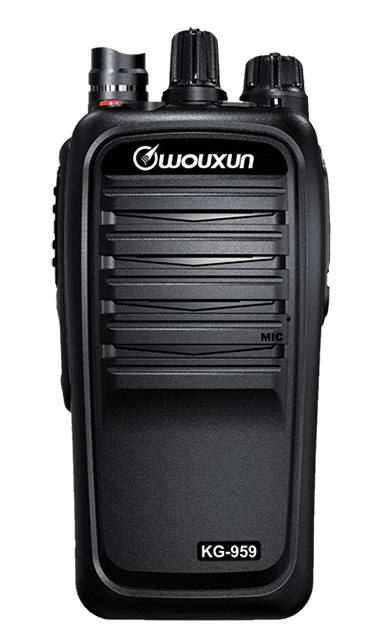

Two Way Radio KG-959



	Radio Direct Charging , Battery Save , Two Way Radio KG-959

CLICK HERE CLOSE LIST


MAIN FUNCTIONS
Wireless Programming on Cell Phone App VOX Function CTCSS / DCS , NON-Standard is Selectable Chinese and English Voice Guide Wide and Narrow Bandwidth ( 12.5 / 25 KHz ) Scrambler Function Compander Function Multi Scan Mode Busy Channel Lockout Low Voltage Prompt Transmit Overtime Prompt PC Programmable Adding Channel Scanning Waterproof IP66


TECHNICAL SPECIFICATION

Intergration
Frequency Range	Suitable For Different Countries or Areas UHF : 420-520MHz / 400-480MHz 400-470MHz / 350-390MHz VHF : 66-88MHz / 136-174MHz 245-250MHz / 216-280MHz
Step	5 / 6.25 / 10 / 12.5 / 25 / 50 / 100KHz
Channel Number	256
Work Mode	F2D / F3E
Operating Temperature	-20℃～+40℃
Voltage	7.4VDC
Antenna Impedance	50Ω
Weight	340 g
Size	62 x 37 x 132 MM

Receiver
	Wide	Narrow
Adjacent Channel Selectivity	≤70dB	≤60dB
Inter Modulation	≤65dB	≤60dB
Spurious Response	≤70dB	≤70dB
Audio Response	+1~-3dB(0.3~3KHz)	+1~-3dB(0.3~3KHz)
Signal to Noise Ratio	≥45dB	≥40dB
Audio Distortion	≤5%
Audio Power	≤500mW
Sensitivity	UHF/VHF：0.25µV（12dB SINAD）

Transmitter
	Wide	Narrow
Adjacent Channel Selectivity	≥70dB	≥60dB
Type of Modulation	16K F3E	11K F3E
Spurious	≥60dB	≥60dB
Audio Response	+1~-3dB(0.3~3KHz)	+1~-3dB(0.3~3KHz)
Max Frequency Deviation	±5KHz	±2.5KHz
Frequency Stability	±2.5PPM
Audio Distortion	≤5%
Output Power	4W / 1W , 0.5W(PMR)

STANDARD ACCESSORY

BLO-016	CHA-020	CHA-020	OTH-001

Li-ion Battery Pack , 2600mAh	Desktop Charger	Power Supply Adaptor	Belt Clip

OTH-005	ANO-012

Hand Strap	Antenna


OPTIONAL ACCESSORY

BLO-011	CHA-027	LCO-003	PCO-009

Li-ion Battery Pack , 3200mAh	Six-way Charger	Leather Case	USB Cable

HEO-001	HEO-002	HEO-003	HEO-005

Headset	Air Conduit Earphone	Headset	Air Conduit Earphone

SMO-001	SMO-002	CCO-002	ELO-005

Speaker	Speaker	Car Charger	Eliminator

ANO-038	ANO-012	AAO-001	AAO-002

Antenna	Antenna	SL16 Antenna Adaptor	BNC Antenna Adaptor
