Dual Bands , Large Color Screen , Two Way Radio KG-UV8D



	Dual Bands , Large Color Screen , Two Way Radio KG-UV8D

CLICK HERE CLOSE LIST

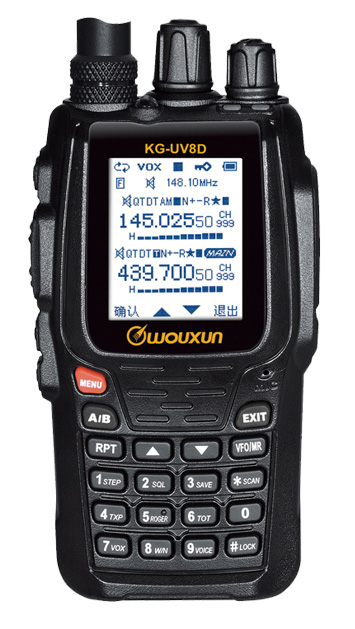

kg-uv8d

Reverse Frequency

Stopwatch

All Calls,Group Calls And Selective Calls

Priority Scan Function

Remote Alarm

MAIN FUNCTIONS

Dulex Repeater(VHF to UHFor UHF to VHF)

Duplex Work Mode(TX on one area while RX on the other area simultaneously )

Dual Receiving(RX on the same/different bands of A&B areas simultaneously)

Dual Display,Dual Band Display on Large Screen,Two Independent Operation System

Frequency Offset and Direction Programmable in Repeater Mode UHF/VHF or VHF/UHF
Cross-Band Repeater

999 Memory Channels

QT/DQT Encoding/Decoding,QT/DQT Scan

VOX and SOS Funcion

Multi Definition for Sidekeys

Incoming Message Display Caller ID display

DTMF Encoding&Decoding

Wide/Narrow Bandwidth Selection (25KHZ/12.5KHz)

Voice Guide:Chinese/English

Chinese/English Screen Display

Bright Flashlight illumination

Single-Tone Pulse Frequency:2100Hz/1750Hz/1000Hz/1450Hz(signalling for activating repeater)


TECHNICAL SPECIFICATION

Intergration
Frequency Range	suitable for different countries or areas 136-174MHz & 400-470MHz 136-174MHz & 400-480MHz 136-174MHz & 420-520MHz 144-146MHz & 430-440MHz 144-148MHz & 420-520MHz
Step	5KHz/6.25KHz/10KHz/12.5KHz 25KHz/50KHz/100KHz
Channel Number	999
Work Mode	F2D/F3E
Operating Temperature	-20℃～+40℃
Voltage	7.4VDC
Antenna Impedance	50Ω
Weight	490 g
Size	125 x 62 x 33 MM

Receiver
	Wide	Narrow
Adjacent Channel Selectivity	≤70dB	≤60dB
Inter Modulation	≤65dB	≤60dB
Spurious Response	≤70dB	≤70dB
Audio Response	+1~-3dB(0.3~3KHz)	+1~-3dB(0.3~3KHz)
Signal to Noise Ratio	≥45dB	≥40dB
Audio Distortion	≤5%
Audio Power	≤500mW
Sensitivity	UHF/VHF：0.25µV（12dB SINAD）

Transmitter
	Wide	Narrow
Adjacent Channel Selectivity	≥70dB	≥60dB
Type of Modulation	16K F3E	11K F3E
Spurious	≥60dB	≥60dB
Audio Response	+1~-3dB(0.3~3KHz)	+1~-3dB(0.3~3KHz)
Max Frequency Deviation	±5KHz	±2.5KHz
Frequency Stability	±2.5PPM
Audio Distortion	≤5%
Output Power	UHF H:4W , L:1W VHF H:5W , L:1W

STANDARD ACCESSORY

BLO-006	CHA-009	ANO-011	OTH-003

Li-ion Battery Pack , 1700mAh	Desktop Charger	Antenna	Belt Clip

OTH-005

Hand Strap

OPTIONAL ACCESSORY

BLO-009	CHA-010	LCO-003	PCO-009

Li-ion Battery Pack , 2600mAh	Six-way Charger	Leather Case	USB Cable

HEO-001	HEO-002	HEO-003	HEO-005

Headset	Air Conduit Earphone	Headset	Air Conduit Earphone

SMO-001	SMO-002	CCO-001	ELO-003

Speaker	Speaker	Car Charger	Eliminator

ANO-011	AAO-001	AAO-002

Antenna	SL16 Antenna Adaptor	BNC Antenna Adaptor
