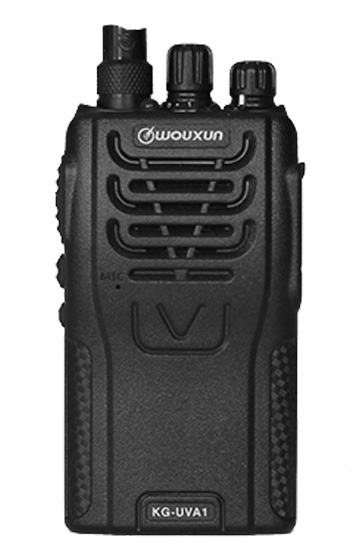

Two Way Radio KG-UVA1



	Two Way Radio KG-UVA1

CLICK HERE CLOSE LIST

kg-uva1

IP55 Waterproof

Voice Prompt

Low Battery Prompt

Busy Channel Lockout

MAIN FUNCTIONS

Working Mode :U-V,V-U,V-V,U-U can be set freely

SOS Function

1750Hz Burst Tone

DTMF Encoding Function

105 Groups DCS/50 Groups CTCSS

Bright Flashlight Illumination

Band Can Be Set Freely: VHF TX-UHF RX or UHF TX-VHF RX

English Voice Guide

FM Radio

Wide/Narrow Bandwidth Selection(25KHz /12.5KHz )

Priority Channel Scan

High/Low Power Selection(VHF:5W/1W UHF4W/1W)

Add Scanning Channel

Multi Scan Mode (TO/CO/SE)

VOX Transmission(Level Adjustable)

Transmit Overtime Voice Prompt

Begin/End Transmitting BEEP Prompt

Program By Computer

Wire Clone Function

Superheterodyne Receiver Type

TECHNICAL SPECIFICATION

Intergration
Frequency Range	Can Be Suitable For Different Countries or Areas 136-174&216-280MHz (RX/TX) 136-174&350-470MHz (RX/TX) 136-174&400-480MHz (RX/TX) 136-174&420-520MHz (RX/TX) 144-146&430-440MHz (RX/TX) 144-148&222-225MHz (RX/TX) 66-88&136-174MHz (RX/TX) 66-88&400-480MHz (RX/TX) FM: 76-108MHz (RX)
Memory Channels	16 channels
Frequency Stability	±2.5ppm
Operating Voltage	7.4V
Operating Temperature	-30℃～+60℃
Waterproof	IP 55
Antenna Impedance	50Ω
Dimension	61x121x37.5(mm)
Weight	228g

Receiver
Sensitivity (12dB SINAD）	0.16µV
Squelch Rejection Sensitivity	≤0.8µV
Squelch Sensitivity	≤0.2µV
Audio Output power	500mW
Audio Distortion	≤5%
Audio Response	（300-3000Hz) +1 to -3dB
Co-channel Rejection	≥-8.0dB
Performance of Amplitude Limiter	≤3
Adjacent Channel Selection	Channel Space: 25KHz ≥70 dB Channel Space: 12.5KHz ≥60 dB
Inter-modulation	≥65 dB
Resistance	≥84 dB
Spurious Radiation	9KHz-1GHz≤-57dBm 1GHz-4GHz≤-47dBm

Transmitter
Frequency Stability	±2.5PPM
RF Carrier Power	UHF: 4W VHF: 5W
Effective Radiation Power (ERP)	within pre-determined value ±7.5dB
Max. Frequency Deviation	Channel Space: 25KHz ±5KHz Channel Space: 12.5KHz ±2.5KHz
Audio Modulation	+3dB (pre-emphasis by 6dB between 0.3-3KHz)
Adjacent Channel Power	Channel Space: 25KHz ≥70 dB Channel Space: 12.5KHz ≥60 dB
Spurious Radiation	≤-36dBm
Inter modulation Attenuation	≥40dB
Modulation Distortion	≤10%
Residual FM	≤-35dB
Residual AM	≤3%

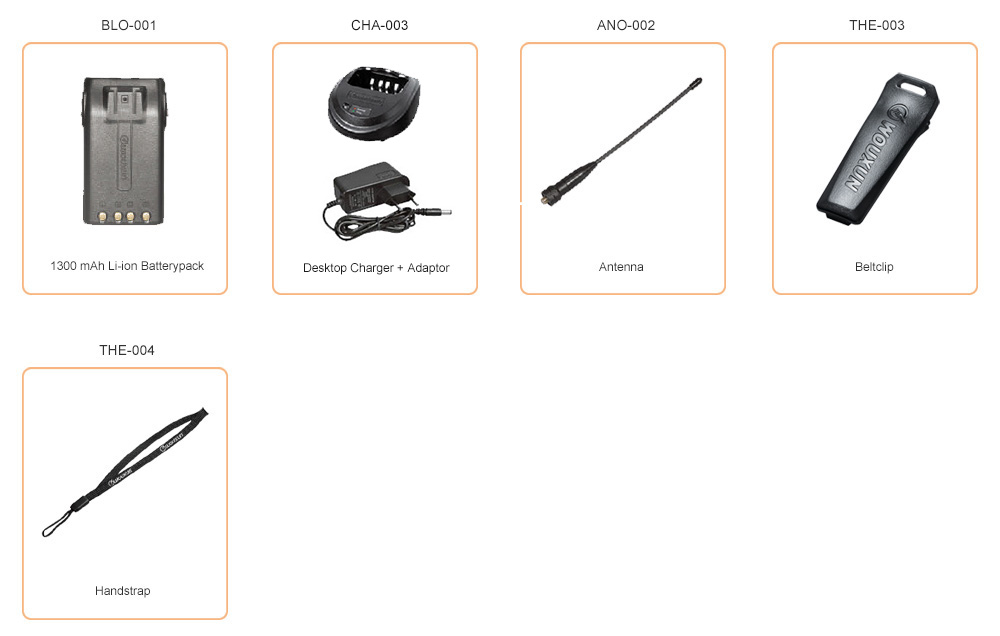

STANDARD ACCESSORY
